Mobile Compactor
Buy Mobile Compactor of PRK Steel Pvt.Ltd (leading manufacturer in India)We offer a premium range of Mobile Compactor designed for safe, efficient, and space-saving usage across various industrial applications.
Key Features
| Unit Height | Up to 3 meters |
| Unit Length | Up to 10 meters |
| Unit Depth | 300mm to 1000mm standard |
| Operation | Manual (hand crank) or Mechanically assisted |
| Safety Features | Aisle locks, anti-toppling design, bumpers |
| Finish | Powder coated (standard grey or custom colours) |
Mobile Compactor - Product Overview
PRK Steel Products Pvt. Ltd., based in Jalandhar, is a trusted and leading manufacturer and supplier of Mobile Compactor Storage Systems across India. With over 30 years of experience in designing and delivering advanced storage solutions, we offer high-quality mobile compactors that are ideal for modern storage needs where space optimisation, accessibility, and security are key.

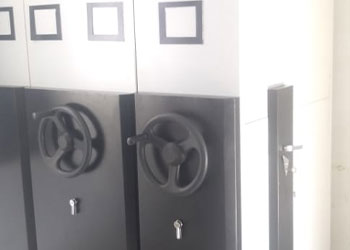

A Mobile Compactor is a high-density storage system designed to save valuable floor space by eliminating multiple fixed aisles. It is essentially a set of storage racks mounted on a movable base, which slides over tracks installed on the floor. The mobile base units can be manually operated or mechanised, allowing individual or multiple racks to move with ease and reveal only one or two access aisles as required.
Mobile Compactors are ideal for storing files, records, inventory, spare parts, tools, or even heavy goods, depending on the application. Their smart design makes them suitable for areas where space is limited but storage capacity is high.
How It Works
The mobile compactor system consists of fixed racks mounted on mobile carriages that move on rails installed on the floor. The movement is either:
Manually operated using hand cranks or push-pull handles, or
Mechanically assisted with chain-driven mechanisms for larger or heavier units.
The racks are aligned tightly side-by-side and can be moved to create a single aisle where needed, significantly increasing the amount of usable storage within the same footprint.
Key Features of Operation:
Applications
Our Mobile Compactors are widely used across different sectors for both commercial and industrial purposes. Common areas of application include:
Customization Options
At PRK Steel, we understand that no two clients have the same requirements. Hence, we offer full customisation options:
Our design experts also help in layout planning, helping you get maximum benefit from the available floor area.
Technical Specifications
| Frame Type | Box type / Slotted angle |
|---|---|
| Steel Grade | CRCA / HR Steel IS:513 |
| Load Capacity | 80 kg to 300 kg per shelf (customisable) |
| Base Construction | Welded heavy-duty MS with castor wheels or rollers |
| Rail Type | MS flat rail or 'T' rail with smooth finish |
| No. of Units | 2 to 10 bays per system (expandable) |
| Wheel Type | Nylon or metal wheels with ball bearings |
| Drive Type | Hand crank / Push-pull / Chain-driven |
| Finish Type | Powder coated, 40–70 microns thickness |
| Colour Options | Grey, blue, ivory, or customised RAL shades |
| Locking System | Key-based central lock or pad lock facility |
| Compliance | Follows BIS safety and design guidelines |
| Maintenance | Low maintenance with long-term durability |
