Ladder Cable Tray
Buy Ladder Cable Tray of PRK Steel Pvt.Ltd (leading manufacturer in India)We offer a premium range of Ladder Cable Tray designed for safe, efficient, and space-saving usage across various industrial applications.
Key Features
| Width Range | 50 mm to 1000 mm |
| Depth Range | 25 mm to 150 mm |
| Thickness | 1.2 mm to 3.0 mm or more |
| Corrosion Resistance | Yes, as per finish type |
| Cover Type | Solid or perforated (optional) |
| Working Temperature | -20°C to +120°C (material-dependent) |
Ladder Cable Tray -Product Overview
PRK Steel Pvt. Ltd., based in Lucknow, stands as a reputed and trusted manufacturer and supplier of Ladder Cable Trays. With a strong legacy in industrial steel fabrications, PRK Steel has earned recognition for delivering high-performance, durable, and cost-effective cable management systems across India. Their Ladder Cable Trays are one of the flagship offerings, ideal for supporting and routing large volumes of electrical and data cabling in industrial, commercial, and infrastructure projects.
What is a Ladder Cable Tray?

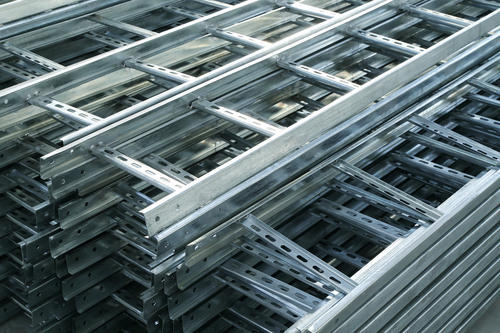

A Ladder Cable Tray is a type of cable management system constructed with two longitudinal side rails connected by individual transverse rungs, resembling a ladder. This structure provides continuous support for cables, especially for heavier power cables. PRK Steel’s Ladder Cable Trays are manufactured using high-quality materials such as mild steel, galvanized iron, stainless steel, or aluminum, ensuring long-term strength, stability, and corrosion resistance.
These trays are engineered to provide excellent ventilation, minimizing heat buildup and reducing the risk of insulation damage. They are suitable for both indoor and outdoor installations and comply with national and international standards for safety and performance.
How It Works
The Ladder Cable Tray works as a structured pathway that supports electrical or telecommunication cables. Cables are laid along the tray in a neat, organized manner, and the open structure allows easy inspection, maintenance, and replacement without the need for dismantling. The rungs offer points for cable tying or clamping to secure the cables during operation or in seismic-prone areas. PRK Steel offers trays in different widths, depths, and lengths to cater to varying load and capacity requirements.
Applications
PRK Steel’s Ladder Cable Trays are used in a wide range of sectors, including:
Customization Options
PRK Steel Pvt. Ltd. offers extensive customization options to meet the specific needs of various industries:
Technical Specifications
| Tray Type | Ladder Type (Open Ventilated) |
|---|---|
| Material | High-Grade Mild Steel / Galvanized Iron / Stainless Steel (304/316) |
| Frame Material | IS-grade Mild Steel / SS 304 / SS 316 / GI |
| Tray Type | Ladder-Type with rungs at regular intervals |
| Surface Treatment | Hot Dip Galvanizing / Pre-Galvanizing / Powder Coating / Painting |
| Standard Width Options | 50 mm / 100 mm / 150 mm / 300 mm / 450 mm / 600 mm / 800 mm / 1000 mm / 1200 mm |
| Tray Height | 25 mm to 150 mm |
| Rung Spacing Options | 150 mm / 200 mm / 250 mm / 300 mm |
| Load Per Meter | Up to 100 kg/meter depending on size and material |
| Tray Length | 2500 mm / 3000 mm standard (customizable) |
| Color Options | Metallic Silver, Grey, Blue, White, Custom RAL Shades |
| Accessories Available | Horizontal Bends, Vertical Bends, Tees, Crosses, Reducers, Couplers, Covers |
| Installation Type | Bolt-on using wall brackets, ceiling rods, floor stands |
Product Documents
Download these documents for detailed information about our Ladder Cable Tray:
